Product details
- Intel® i9/i7 Processors
- 2x 2.5GbE RJ45
- 2x COM & 8x USB 3.2
Preliminary

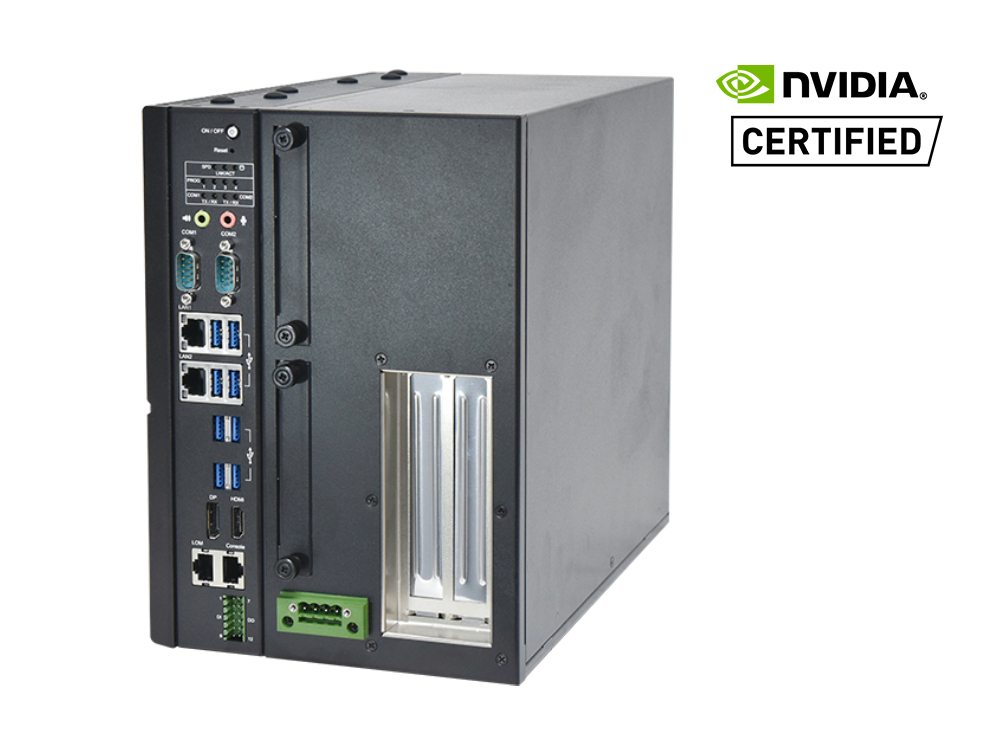

Compact AI Platform with 14th Gen Intel® i9/i7 Processors for Industrial Applications
- 14th Gen.Intel® i9/i7/i5/i3 Processors
- DDR5 SODIMM Up to 64GB
- 2x 2.5GbE RJ45, 1x RJ45 Console, 1x RJ45 LOM (By SKU)
- 2x COM, 8x USB 3.2, 1x HDMI, 1x DP, 4x DI & DO
- 2x 2.5” Removable HDD/SSD
- 1x M.2(SATA) 2242 B-Key, 1x M.2(NVMe) 2280 M-Key
| NVIDIA L4 | NVIDIA A2 |
|---|---|
 |
 |
Overview
The EAI-I731, a standard product from Lanner, harnesses the power of the 14th Gen. Intel® i9/i7/i5/i3 Processor platform, offering optimized performance for industrial workstations' control systems. Packed with features, it includes DDR4 ECC SO-DIMM slots supporting up to 64GB of memory, along with connectivity options like 1x HDMI and 1x DP 1.4 for displays, 2x 2.5GbE LAN ports for fast networking, and 1x PCIe x16 slot and 1x PCIe x4 slot for expansion. Additionally, it features 2x removable 2.5" SATA drive bays, 1x M.2 slot for LTE and 5G connectivity, 2x M.2 slot for WiFi, 2x RS-232 by DB9 Male ports, and 8x USB 3.2 ports for versatile peripheral connections.
Use Case
- Implementing AI-Enhanced Automated Optical Inspection (AOI) to Reduce False Detection Rates
- AI-Powered Computer Vision for Workplace Safety in Manufacturing
Specifications
| Platform | |
| CPU | 14th Gen Intel® i9/i7/i5/i3 Processors |
| Chipset | Intel® R680E |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | 3200Mhz DDR5 ECC / Non-ECC |
| Max. Capacity | 64 GB |
| Ethernet | |
| Interface | 2x 2.5 GbE RJ45 1x RJ45 LOM (By SKU) |
| Speed | 100M/1G/2.5 GbE |
| Storage | |
| Type | SATA III |
| Installation | 2 x 2.5” Removable HDD/SSD |
| Onboard Slot | 1x M.2(SATA) 2242 B-Key 1x M.2(NVMe) 2280 M-Key |
| I/O Interface | |
| Reset Button | 1 |
| Power Button | 1 |
| Serial | 1x RJ45 Console, 1x RJ45 LOM (By SKU) |
| COM | 2x DB9 RS232/422/485 |
| Display | 1x HDMI, 1x DP 1.4 |
| USB | 8x USB 3.2 Gen1 Type A |
| DIO | 4x DI (support PNP/NPN/dry contact) 4x DO (support dry/sink) |
| Audio | 2x Phone Jack for Audio Line-out & Mic-in |
| Expansion | |
| mini-PCIe/M.2 | 1x M.2 2230 E-Key for WiFi 6/6E (BT) 2x M.2 3042/3050/3052 B-Key for LTE/5G 1x mini-PCIe 2242 IAC-MVGA03 (for debug only) |
| PCIe Slot | 1x PCIe*16 Gen4 1x PCIe*4 Gen3 |
| SIM Card Slot | Nano-SIM x1 (each for LTE/5G module) 1x eSIM |
| Power | |
| Type/Watts | 300W |
| Input | 9~20 VDC with 1.5KV isolation protection |
| Cooling | |
| Processor | Passive CPU Heatsink |
| Environmental Parameters | |
| Temperature | -25~65ºC Operating with 35W CPU and without PCIe expansion card -25~45ºC Operating with 65W CPU and without PCIe expansion card -40~85ºC Ambient storage |
| Relative Humidity | 5~90% Operating 5~ 95% Non-Operating |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Onboard TPM 2.0 |
| System Dimensions | |
| W x H x D | 198 mm x 250 mm x 286mm |
| Weight | TBD |
| Mounting | Wall mount |
| OS | |
| Linux | Dabian 11 pre-installed, Ubuntu 20.04 |
| Windows | Win 10 IoT |
| Certification | |
| EMC | CE/FCC Class A, UKCA, UL, CB, RoHS |
Order Information
| SKU | CPU | Memory | Storage | Ethernet | IPMI | Console |
| EAI-I731A | 14 Gen. Intel® i9/i7/i5/i3 | 2x DDR5 SODIMM 3200Mhz | 2x 2.5” SSD Removable HDD/SSD 1x M.2(NVMe) 2280 M-Key 2x SATA M.2 2242 M-Key 1x SATA M.2 2242 B-Key |
2x 2.5GbE RJ45 | Yes (AST2600) | 1 x RJ45 |
| EAI-I731B | N/A | N/A |
All product specifications are subject to change without prior notice
