Product details
- AMD Ryzen™ Embedded
- 256GB DDR5
- 4x 10G SFP+
NEW

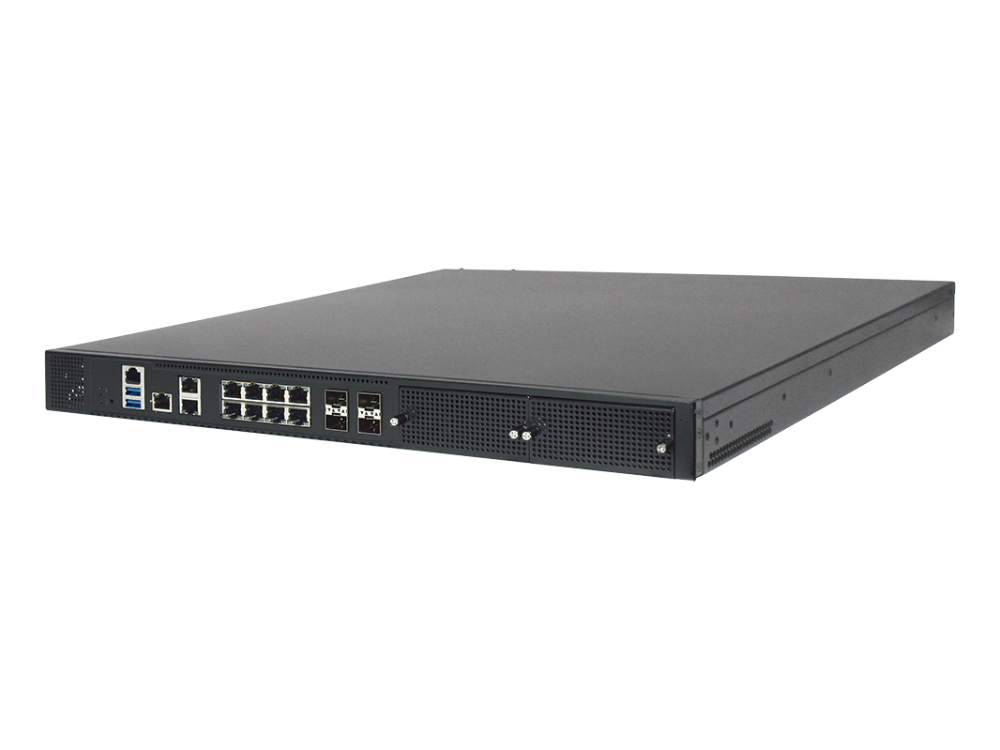

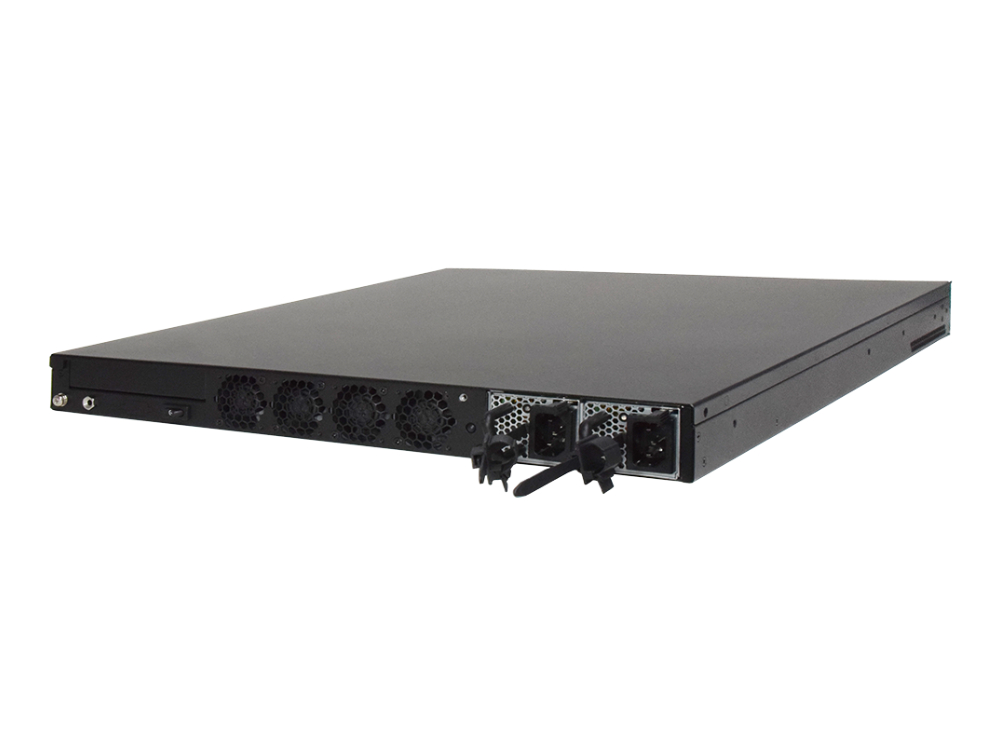

1U 19” Rackmount Network Appliance With AMD Ryzen™ Embedded 7000 Series Processor
- AMD Ryzen™ Embedded 7000 Series Processor
- 4x 288-pin DIMM, Max. 256GB DDR5 5600/5200/3600MT/s ECC Or Non-ECC UDIMM
- 2x 2.5GbE RJ45 Ports, 8x GbE RJ45 Ports With 4x Pairs Of Bypass Gen3 SE (SKU A/B/D), 4x 10G SFP+ Ports, 2x NIC Module Slots
- 1x RJ45 Console, 2x USB 3.0, 1x M.2 2280 (SATA), 1x M.2 2280 (NVMe)
- IPMI Support (SKU D)
Overview
The NCA-5110 is built with AMD Ryzen™ Embedded 7000 Series Processor; this platform is designed for network traffic security, cloud computing and data centers.
Specifications
| Platform | |
| Form Factor | 1U 19” Rackmount |
| Processor Options | AMD Ryzen™ Embedded 7000 Series |
| CPU Socket | AM5 |
| Chipset | AMD B650 |
| Security Acceleration | B650 |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | 1DPC: DDR5 5200 MT/s (Ryzen7000) / 5600 MT/s (Ryzen 9000) ECC Or NonECC UDIMM 2DPC: DDR5 3600 MT/s (Ryzen7000 / 9000) ECC Or Non-ECC UDIMM |
| Max. Capacity | 256GB |
| Socket | 4x 288-pin DIMM |
| Networking | |
| Ethernet Ports | 2x 2.5GbE RJ45 Via 2x Intel® i226-V 8x GbE RJ45 Via 2x I350-AM4 4x 10G SFP+ Via 1x XL710-BM1 |
| Bypass | SKU A/B/D: 4 Pairs Of Bypass Gen3 SE SKU C: N/A |
| NIC Module Slot | 2 |
| LOM | |
| IO Interface | SKU A/B/C: N/A SKU D: 1x RJ45 NCSI |
| OPMA Slot | SKU A/B/C: N/A SKU D: YES |
| I/O Interface | |
| Reset Button | 1 |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | N/A |
| Display | N/A (SKU D: Optional Support By BMC) |
| Power Input | AC Power Inlet On PSU |
| Storage | |
| HDD/SSD Support | 2x 2.5” Internal (Optional) |
| Onboard Slots | 1x M.2 2280 (SATA), 1x M.2 2280 (NVMe) |
| Expansion | |
| PCIe | Optional (1x PCIe*16 Gen4 Single-Deck FH3/4L (10.5”) PCIE Card At Rear) |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | TPM 2.0 (Optional) |
| Cooling | |
| Processor | Passive CPU Heatsink |
| System | 4 x Smart Fans |
| Environmental Parameters | |
| Temperature | 0~40ºC Operating -40~70ºC Non-Operating |
| Humidity (RH) | 5~90% Operating 5~95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 438 x 580 x 44 mm |
| Weight | - |
| Package Dimensions | |
| (WxDxH) | - |
| Weight | - |
| Power | |

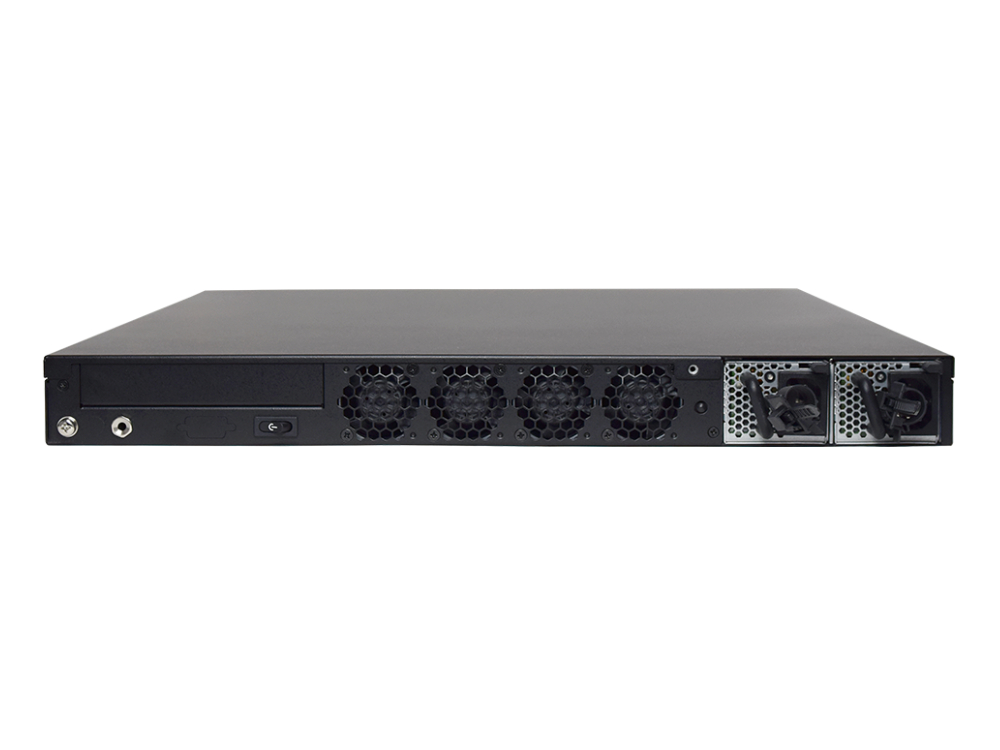

| Type / Watts | 450W 1+1 ATX AC Redundant PSUs (DC As Optional) |
| Input | AC Redundant 450W 100~120 / 200~240V@50-60Hz, 6A (Each) DC Redundant 450W (Optional) 48-60V 12A (Each) |
| Certification | |
| Approvals and Compliance | RoHS, CE/FCC Class A, UL, UKCA |
Order Information
| NCA-5110A | AMD Ryzen 7000 Series (EPIC 4000) Or Ryzen 9000 Series (EPIC 4005), 1x GbE RJ45 MGMT, 2x 2.5GbE, 8x GbE RJ45 w/ Bypass, 4x10G SFP+, 2x NCS2 Slots, TPM2.0 (Optional), 1x M.2 2280 SATA Slot, 1x M.2 2280 NVMe Slot, Redundant PSU |
| NCA-5110B | AMD Ryzen 7000 Series (EPIC 4000) Or Ryzen 9000 Series (EPIC 4005), 1x GbE RJ45 MGMT, 2x 2.5GbE, 8x GbE RJ45 w/ Bypass, 4x 10G SFP+, 2x NCS2 Slots, TPM2.0 (Optional), 1x M.2 2280 SATA Slot, 1x M.2 2280 NVMe Slot, Redundant PSU |
| NCA-5110C | AMD Ryzen 7000 Series (EPIC 4000) Or Ryzen 9000 Series (EPIC 4005), 2x 2.5GbE, 8x GbE RJ45, 4x10G SFP+, 2x NCS2 Slots, 1x M.2 2280 SATA Slot, 1x M.2 2280 NVMe Slot, Redundant PSU |
| NCA-5110D | AMD Ryzen 7000 Series (EPIC 4000) Or Ryzen 9000 Series (EPIC 4005), 1x GbE RJ45 NCSI LOM Port, 2x 2.5GbE, 8x GbE RJ45 w/ Bypass, 4x 10G SFP+, 2x NCS2 Slots, TPM2.0 (Optional), 1x M.2 2280 SATA Slot, 1x M.2 2280 NVMe Slot, Redundant PSU |
All product specifications are subject to change without prior notice
