AI Inference System With NVIDIA® Jetson Orin NX/Nano
- NVIDIA® Jetson Orin NX/Nano
- Up To 1024-core NVIDIA CUDA GPU With 32 Tensor Cores

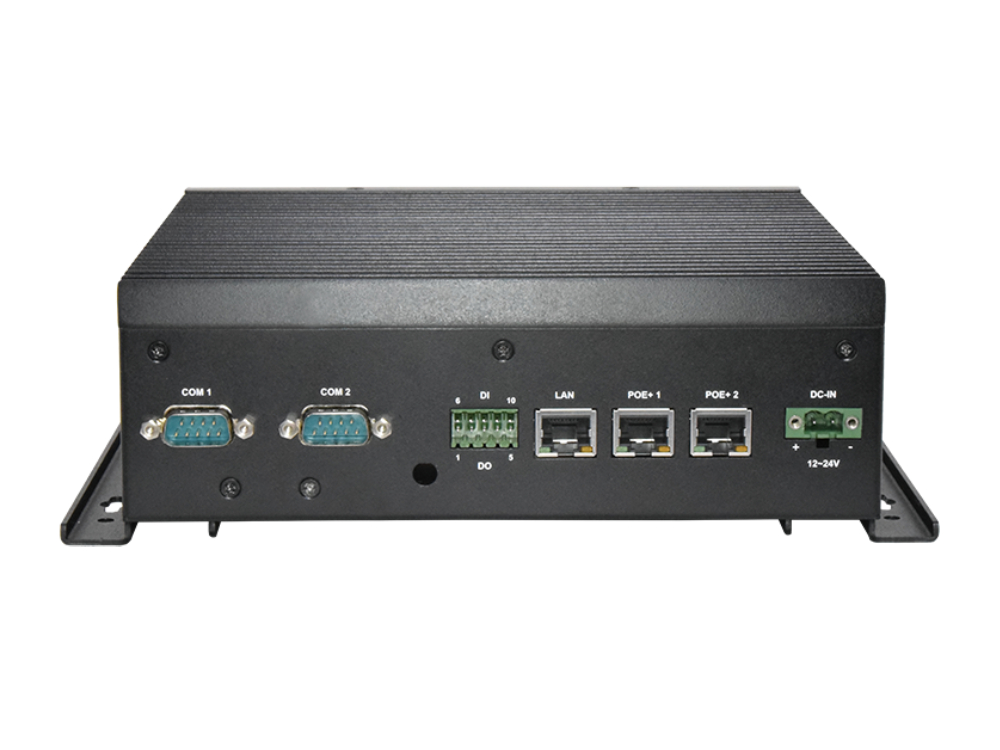

- 1x GbE RJ45, 2x GbE RJ45 w/ PoE+

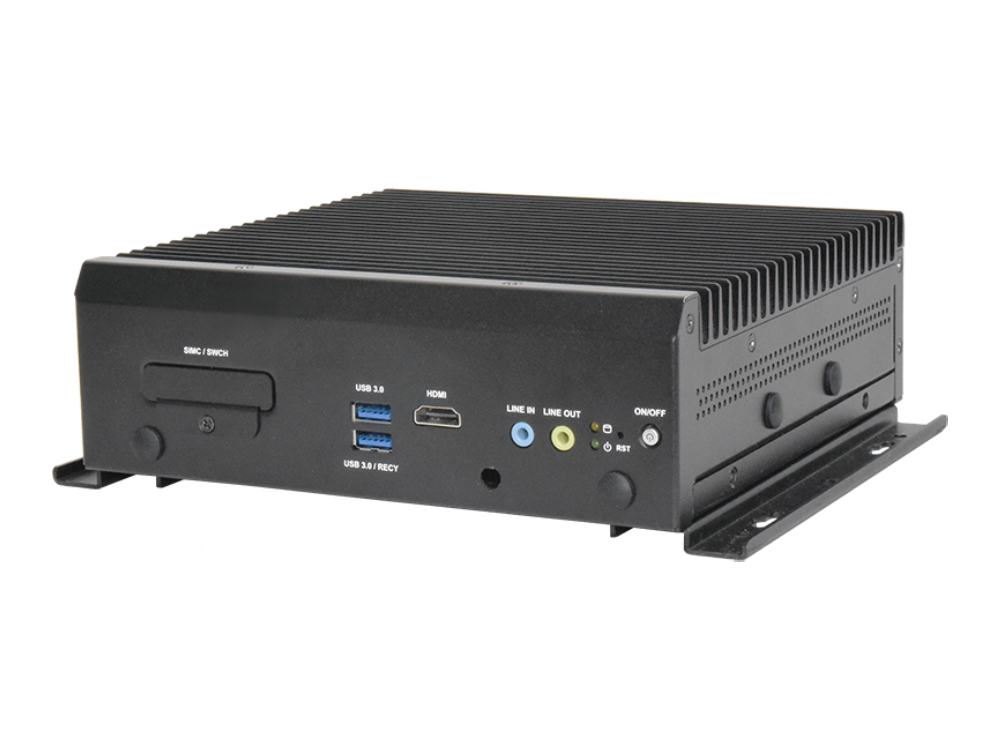

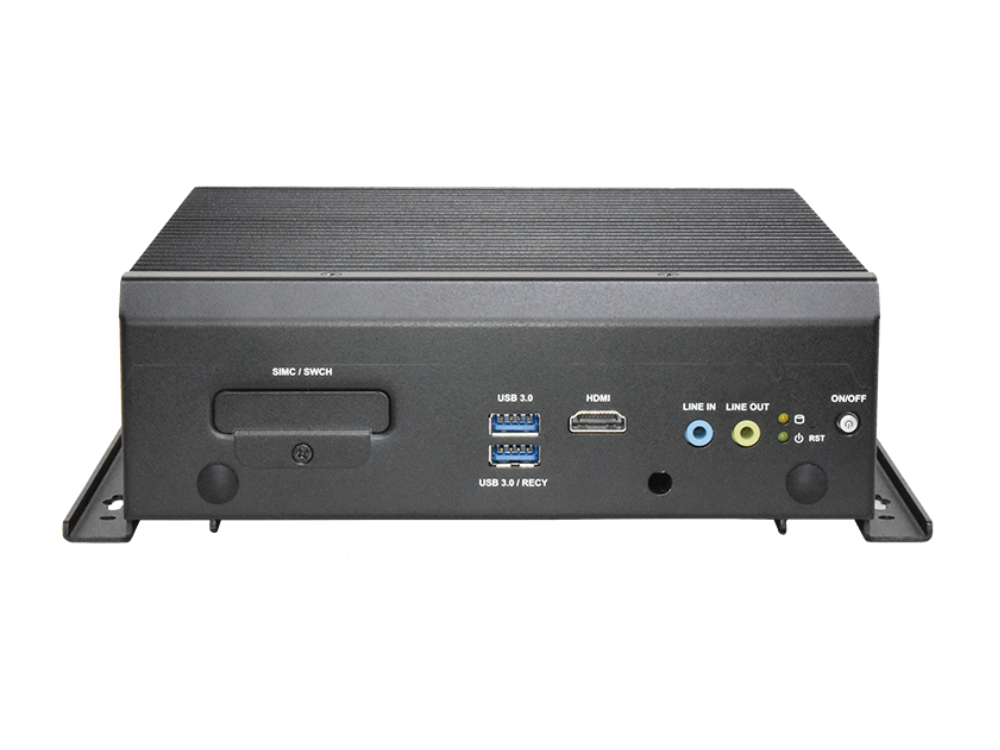

- 2x COM, 2x USB 3.0, 1x HDMI, 4x DI & 2x DO, 2x Audio jack
- 1x M.2 2230 E-Key for WiFi, 1x M.2 3042/3052 B-Key for 5GSub6/LTE
- Support NVIDIA SDK 6.2
- Wide range temperature of -40°C~70°C
Overview

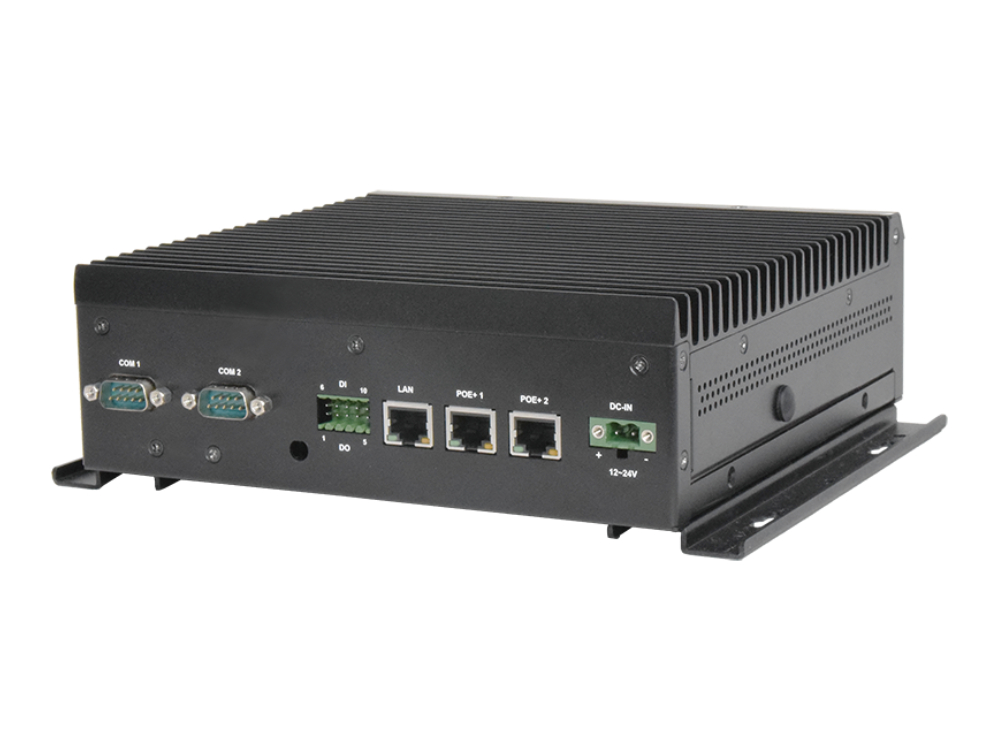

The EAI-I132 is a fanless, IP40-rated edge AI system built to withstand wide temperature ranges, making it highly reliable for deployment in harsh environments. Powered by NVIDIA Jetson Orin NX or Nano, it delivers up to 100 TOPS of AI performance to handle demanding workloads such as traffic video analytics, PPE compliance monitoring, and autonomous system applications. Designed for flexibility, it offers rich I/O options including USB, COM, and DIO, while supporting both Wi-Fi and 5G connectivity to enable seamless data streaming in mission-critical AI scenarios.
Use Case
Specifications
| Platform | |
| CPU | NVIDIA® Jetson Orin NX/Nano |
| SOM TDP | Up to 25W |
| Core Numbers | 8-core/6-core |
| Chipset | SoC |
| GPU | Up To 1024-core NVIDIA Ampere Architecture GPU With 16~32 Tensor Cores |
| System Memory | |
| Technology | 128-bit/64-bit LPDDR5 |
| Max. Capacity | 16/8/4 GB (By SKU) |
| Ethernet | |
| Interface | 1x GbE RJ45 2x GbE RJ45 w/ PoE+ (under Max 60W) |
| Speed | 3x 10/100/1000 Mbps |
| I/O Interface | |
| Reset Button | 1 |
| Power Button | 1 |
| Serial | 2x Isolated RS232/422/485 (DB9) |
| Display | 1x HDMI |
| USB | 2x USB 3.0 Type A |
| DIO | 4x DI, 2x DO |
| Audio | 1x Line-in & 1x Line out |
| Antenna | 4 x Antenna hole for LTE/5G Sub6 2 x Antenna hole for Wifi |
| Storage | |
| Onboard Slots | 1x M.2(NVMe) 2242/ 2280 M-Key (default 2280, 128G) |
| Expansion | |
| M.2 | 1x M.2 2230 E-Key for WiFi 1x M.2 3042/3052 B-Key for 5G Sub6/LTE w/SIM |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Onboard TPM 2.0 |
| Cooling | |
| Processor | Passive Heatsink |
| System | Fanless system |
| Heater | Yes |
| Environmental Parameters | |
| Temperature | -40°C~70°C w/ wireless module |
| Humidity (RH) | 5~90% Operating 5~ 95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 201 x 196 x 65 mm |
| Weight | TBD |
| Form Factor | Wallmount (Optional VESA mount), Chassis With Intrusion Design |
| Power | |
| Type / Watts | 12V/24V |
| Input | 1x 1*2 terminal block Power Input Rated DC 12V/24V |
| OS | |
| Linux | NVIDIA Jetpack 6.2 Ubuntu 22.0.4 LTS |
| Certification | |
| EMC | CE/FCC Class A, UL |
Order Information
| SKU | CPU | Storage | Default Port | Expansion | Power |
| EAI-I132A | NVIDIA Jetson Orin NX With 16GB LPDDR5 Memory |
1x M.2(NVMe) 2242/ 2280 M-Key |
3x GbE RJ45 (one with PoE+) 2x COM 2x USB 3.2 Gen1 2x Audio jack 1x HDMI 4x DI & 2x DO |
1x M.2 2230 E-Key for WiFi 1x M.2 3042/3052 B-Key for 5G Sub6/LTE w/ SIM |
Rating DC 12V/24V |
| EAI-I132B | NVIDIA Jetson Orin NX With 8GB LPDDR5 Memory |
||||
| EAI-I132C | NVIDIA Jetson Orin Nano With 8GB LPDDR5 Memory |
||||
| EAI-I132D | NVIDIA Jetson Orin Nano With 4GB LPDDR5 Memory |
All product specifications are subject to change without prior notice
