FW-8771



Rackmount x86 Network Security Platform based on Intel® Xeon® E3-1200 v3 processor (Haswell)


Key features

  • Support Intel® Xeon® E3-1200 v3 processor
  • Compact Rackmount 1U with Shorter Depth Design
  • LAN Bypass
  • Expandable with Lanner Ethernet Modules (FW-8771C only)
  • IPMI/Management port
  • ECC Memory Support
  • Redundant Power Supply Units (FW-8771C only)
  • Watchdog
  • 2 x USB 3.0

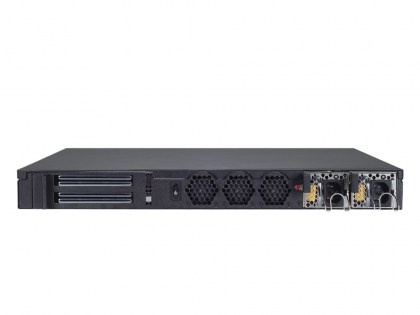

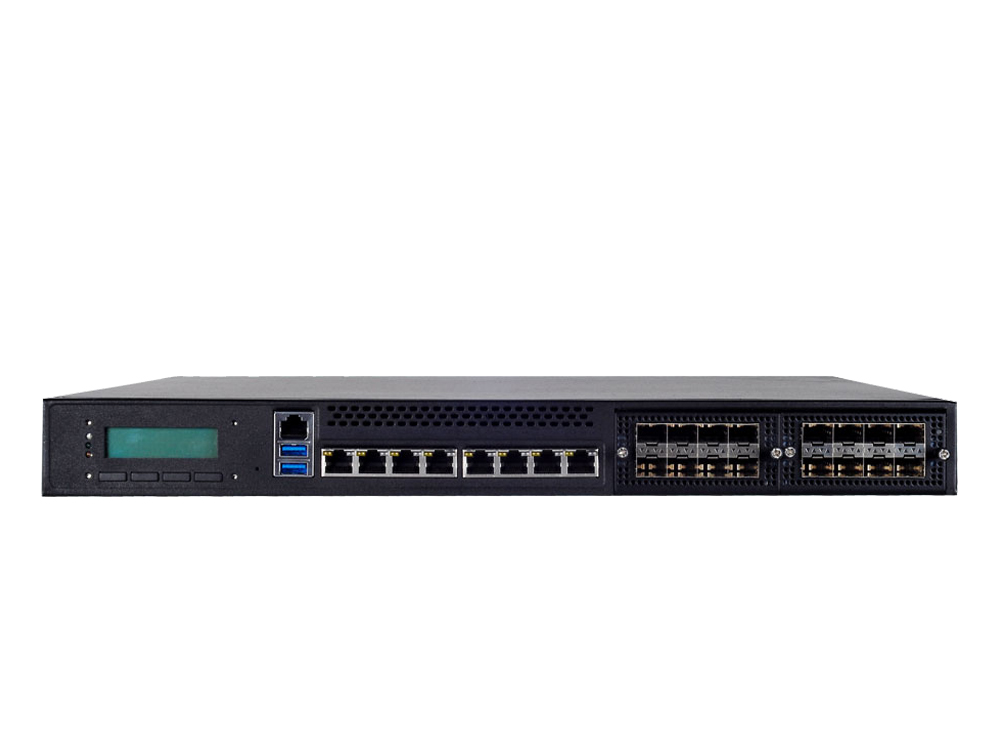

Front view of the FW-8771,x86_desktop, Rackmount x86 Network Security Platform based on Intel® Xeon® E3-1200 v3 processor (Haswell) Back view of the FW-8771,x86_desktop,Rackmount x86 Network Security Platform based on Intel® Xeon® E3-1200 v3 processor (Haswell)

Click to enlarge images


Datasheet (PDF)
(release:2016-10-06)

User Manual (PDF)
(release:2017-04-20)




Overview

The FW-8771 is a 1U rackmountable network security platform incorporating Intel's latest Xeon® "Haswell" CPU.

Based on the new Intel® 22nm process architecture, the proccessor improves CPU performance and efficiency in power consumption. The Intel® AES New Instruction (AES-NI) enhancements use hardware-based acceleration to encrypt/decrypt the data. The improvements in processing performance is over 10% compared with the previous generation Ivy Bridge. This allows network appliances to operate at ultra-high speed.

Specifications

Platform
CPUSupport Intel® Xeon® E3-1275/1225 v3 CPU (Haswell)
ChipsetIntel C226 Chipset (Lynx Point PCH)
Memory TechnologyDDR3 1600 MHz DIMM with ECC support
Memory Capacity32 GB
Memory Socket4 x 240-pin DIMM
Storage
IDE storage1 x CFast
SATA storage2 x 2.5” HDD kit
I/O
Ethernet controller8 x Intel i210
Default LAN8 x GbE RJ45 ports
Bypass3 pairs of 3rd Generation LAN bypass
Console1 x RJ45
Ethernet modules2 (FW-8771C only)
Management ports1, shared with IPMI port
Display output1 x VGA (optional)
USB 3.02 x Type A
IPMI via OPMA slotYes
Power and Mechanical
Expansion2 x PCIe*8 for NIC (Optional Rear PCIE)
Reset270W Single Power Supply or Redundant 300W PSUs
Processor coolingPassive heatsink
System cooling3 cooling fans
OS and Certifications
Operating SystemWindows 7,8,2000, XP, Vista, Server 2008, 2012, Linux Kernel 2.6 or above
CertificationsCE Emission, FCC Class A, RoHS
Physical and Environmental
Storage temperature-20°C to 70°C
Operating temperature0°C to 40°C
Operating humidity5% to 90% (non-condensing)
Storage humidity5% to 95% (non-condensing)
Dimensions (W x H x D)431 mm x 44 mm x 468 mm (16.97" x 1.73" x 18.43")
Weight7 kg (15.4 lbs)
LCD module2 x 20 characters (optional)
WatchdogYes
Internal RTCYes

Ordering information

FW-8771A

Intel® Xeon® processor E3-1200 v3 family (Haswell) socket + 8 GbE LAN ports with 3 pairs Gen.3 LAN Bypass, single PSU, LCM with keypad

FW-8771C

Intel® Xeon® processor E3-1200 v3 family (Haswell) socket + 8 GbE LAN ports + 2x NIC module expansion slots with 3 pairs Gen.3 LAN Bypass, redundant PSUs, LCM with keypad


FW-8771 Datasheet (release:2016-10-06)Download

FW-8771 User Manual (release:2017-04-20)Download

All product specifications are subject to change without prior notice
