FX-3810



3U Rackmount Network Appliance Built with Intel® Xeon® E5-2600 v3/v4 Processor


Key features

  • Intel® Xeon® E5-2600 v3/v4 Processor
  • Max. 128GB DDR4 2133/2400 MHz REG DIMM
  • 4x PCI-E*16 FH/HL, 2x PCI-E*8 FH/HL
  • 1x GbE RJ45 Intel® 82574L LAN Port, 1x RJ45 IO Interface
  • 2x 2.5” HDD/SSD External Bays, 1x mSATA Onboard Slot, OPMA Slot, 1x RJ45 Console
  • 8x Hot-swappable Cooling Fans

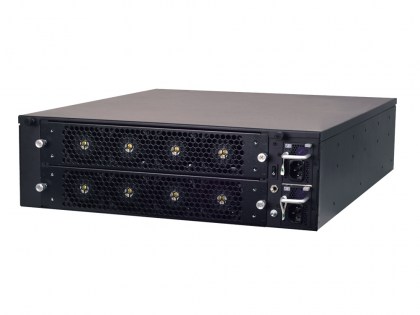

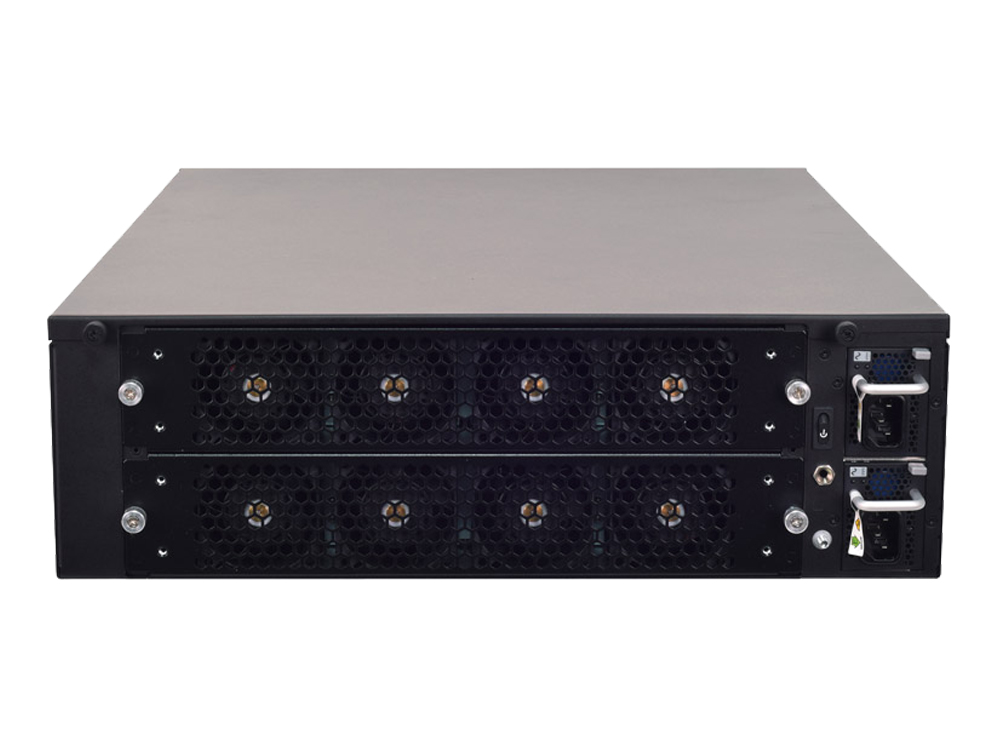

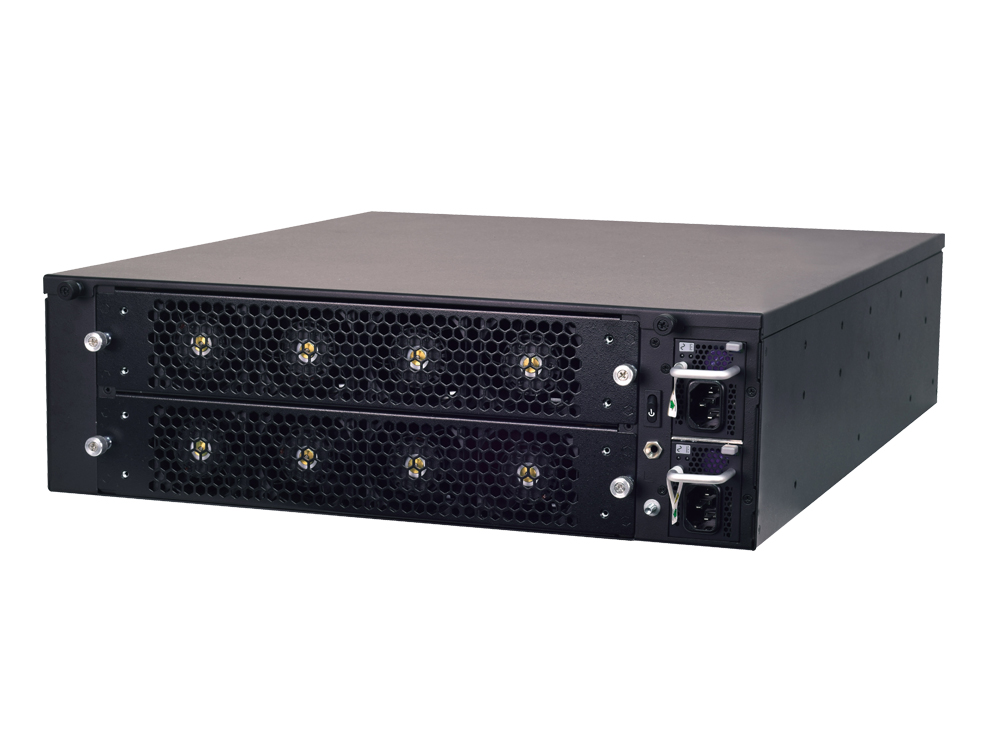

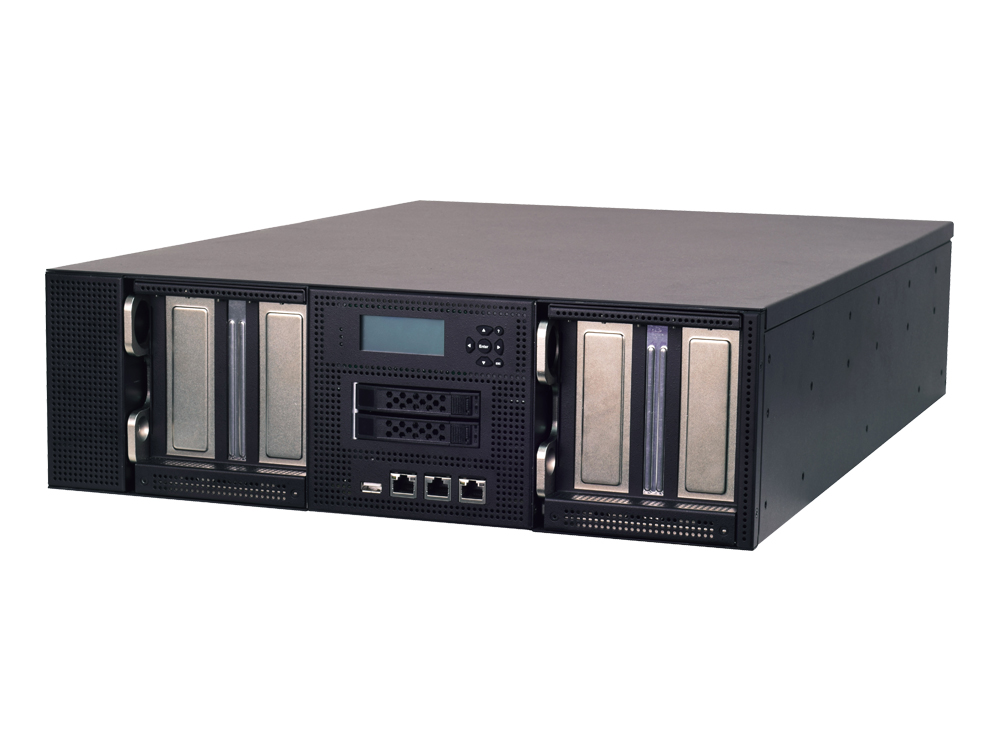

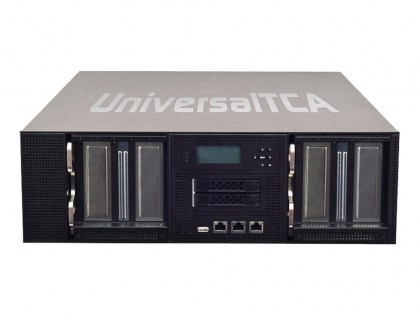

Front view of the FX-3810,x86_rackmount, 3U Rackmount Network Appliance Built with Intel® Xeon® E5-2600 v3/v4 Processor Back view of the FX-3810,x86_rackmount,3U Rackmount Network Appliance Built with Intel® Xeon® E5-2600 v3/v4 Processor

Click to enlarge images


Datasheet (PDF)
(release:2017-06-12)




Overview

The FX-3810 is a high-performance and Open Compute appliance for today’s telecommunication and data center deployment scenarios, offering specs made for hybrid or hot/cold data, data crypto/compression, video encoding/transcoding and network acceleration.

Specifications

Platform
CPUIntel® Xeon® E5-2600 v3/v4 (Haswell/Broadwell-EP)
ChipsetIntel® C612
BIOSAMI SPI Flash BIOS
Memory TechnologyDDR4 2133/2400MHz REG DIMM
Memory Capacity128GB
Memory Socket8 x 288pin DIMM
Storage
SATA storage1 x mSATA
I/O
Ethernet controllerIntel® 82574L
Default LAN1 x RJ45
BypassDepends on NIC Module Specifications
Console1 x RJ45
USB 2.01 x Type A
TPMYes (Optional)
Power and Mechanical
Power inputAC 100V~240V @47~63 Hz
Type/Watt1100W 1+1 ATX Redundant PSUs
Expansion4 x PCI-E*16 FH/HL 2 x PCI-E*8 FH/HL
Reset1
Processor coolingPassive CPU Heatsink
System cooling8 x Hot-swappable Cooling Fans
OS and Certifications
CertificationsRoHS, CE/FCC Class A
Physical and Environmental
Storage temperature-20°C to 70°C
Operating temperature0°C to 40°C
Operating humidity5% to 95% (non-condensing)
Dimensions (W x H x D)438 mm x 609 mm x 132 mm (17.24" x 23.98" x 5.20")
Weight35 kg (77 lbs)
WatchdogYes
Internal RTCYes

Ordering information

FX-38101x GbE, 4x PCI-E*16 FH/HL, 2x PCI-E*8 FH/HL, 6x NIC Slots, 2x 2.5” HDD/SSD Bays


FX-3810 Datasheet (release:2017-06-12)Download

All product specifications are subject to change without prior notice
