Product details
- Intel Atom Bay Trail
- 1x DDR3 8GB Max
- 4xRJ45

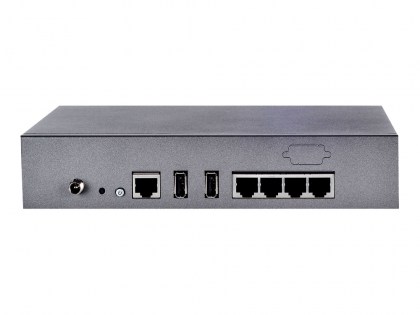

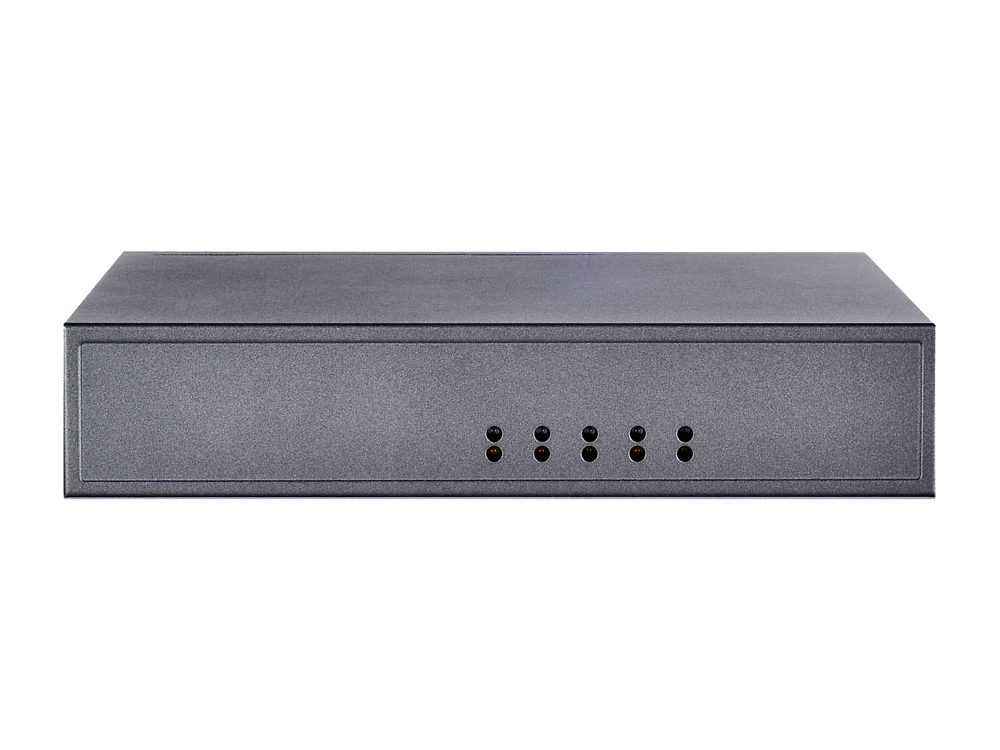

Desktop Network Security Platform with Intel® J1900 "Bay Trail" CPU
- Intel quad core Bay Trail Celeron J1900 or Atom™ E3800 SoC CPU
- Low power consumption
- Supports up to 8 GB DDR3L memory
- Compact desktop form factor
- Built-in 4 GbE LAN ports
- Intel i211 LAN controller
- Data security with Intel AES-NI encryption
- 1 x system cooling fan
i
Discontinued Product
This product is no longer available because it’s being replace by the new generation NCA-1031
Click HERE to find out more information.
Overview
The FW-7543 is the first Lanner network security platform based on Intel®'s J1900 and Atom™ E3800 "Bay Trail" Celeron® CPU, giving it an extremely low power profile. Targeted at UTM, Firewall, VPN, IPS, and WAN optimization applications, the FW-7543's compact size and advanced processor makes it ideal for deployment in an SMB environment.
Specifications
| Platform | |
| CPU | 4-core Intel® Celeron® J1900 or Atom™ E3815 |
| BIOS | AMI BIOS |
| Memory Technology | Single-channel DDR3L 1066/1333 MHz |
| Memory Capacity | 8GB |
| Memory Socket | 1 x 204-pin SODIMM |
| Storage | |
| IDE storage | 1 x CF card Type II |
| SATA storage | 1 x 2.5” HDD/SSD kit (Optional) |
| I/O | |
| Ethernet controller | 4 x Intel i211 |
| Default LAN | 4 x GbE RJ45 |
| Console | 1 x RJ45 |
| Display output | 2x6, 2.0 pin header |
| USB 2.0 | 2 x Type A |
| Expansion | 1x Mini-PCIe (PCIe/USB 2.0) |
| Reset | Physical reset button |
| System cooling | 1 x cooling fan |
| OS and Certifications | |
| Operating System | Win 7, WES 7, Win 8, WES 8, WEC 7, Linux (Fedora 18/Yocto) |
| Certifications | CE Class A, FCC Class B, RoHS |
| Physical and Environmental | |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% to 90% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 220 mm x 44 mm x 176 mm (8.66" x 1.73" x 6.93") |
| Weight | 1.2 kg (2.64 lbs) |
Order Information
| FW-7543A | Intel® AtomTM processor E3815 (Codenamed “Bay Trail”), 4 Intel GbE LAN ports without Bypass, 1 RJ45 console, 2 x USB, 1 x CF socket, 1 x SATA, power adapter, optional 1 x 2.5” HDD Support |
| FW-7543B | Intel® Celeron® processor J1900 series (Codenamed “Bay Trail”), 4 Intel GbE LAN ports without Bypass, 1 RJ45 console, 2 x USB, 1 x CF socket, 1 x SATA, power adapter, optional 1 x 2.5” HDD Support |
All product specifications are subject to change without prior notice
